CAM(OPCS) Optical Printer Control System CAM(OPCS)
NAME
cam - shoot frames on the camera
USAGE
cam [value] # run camera so many frames fwd or reverse
EXAMPLES
cam 12 # run camera 12 frames forward
cam -12 # run camera 12 frames in reverse
cam 54'11 # run camera 54 feet 11 frames
cam >0 # run camera TO counter frame zero
cam >-32 # run camera TO counter frame -32
cam >34'8 # run camera TO counter 34 ft 8 frms
cam >(108/(10+2)) # run camera 9 frames (See SYNTAX(OPCS))
DESCRIPTION
This command will shoot the specified frames on the camera
using the current shutter speed set by SPD(OPCS). The current
shutter speed is always displayed at the top/right of the screen.
Negative numbers will shoot in reverse. So -100 will run the
camera in reverse 100 frames.
Values can also be specified as feet/frames (e.g. 2'15), or as
a mathematical expression (as shown above).
If the value is preceded by '>', this indicates the camera
should "go to" the absolute camera frame counter value.
For fast windoffs that don't involve exposing film, use SEEK(OPCS)
which uses the camera's slewing speed and caps the fader before
moving the camera.
FADE/DX
If there are any pending fades or dissolves, the fader will FIRST
move to its next position before the camera exposes a frame.
FEED
If FEED(OPCS) is enabled, the motors will /first/ move to position
before the camera exposes a frame. (Similar to fade/dx)
AUTOFILT
If AUTOFILT(OPCS) is enabled, the camera will first expose the filter
in the gate before moving the filter wheel. (Like the projector, what
you see in the gate before shooting is what's about to be shot)
ALLSTOP
Hitting the ALLSTOP key (usually the (`) key) will halt the motors
at the nearest frame. ALLSTOP is safe during shooting; it will not
affect exposure, and always leaves the shutter closed after stopping.
The allstop key can be redefined by ALLSTOP(OPCSDEFS).
BUCKLE/VIEWER
The camera WILL NOT RUN if the buckle is tripped. When exposing film,
it also won't run if the viewer is open. If either condition occurs
while the camera is shooting, the motors will stop with an error at
the nearest frame, similar to ALLSTOP.
If 'hardware no' is in effect, the buckle/viewer state is ignored,
so that the OPCS software can run on remote computers that are not
physically connected to an optical printer.
TENSION MOTORS
Before the camera or projector move, the appropriate tension motors
are enabled, to ensure take-ups are in correct modes for film motion.
COUNTER OVERFLOWS
The software internally manages frame numbers in 32-bits,
and therefore can handle values in the range of +/-2 billion.
However, the frame counter /display/ has a limited number of
characters it can display, causing it to 'clock over' like
the odometer of a car.
For 'bigcounters yes' (See BIGCOUNTERS(OPCSDEFS)), the limit
is 6 digits, i.e. -99,999 thru 999,999.
For 'bigcounters nixie', in K2.10 and up supports 8 digits,
i.e. -9,999,999 thru 99,999,999.
In these cases where the counter overflows, it 'clocks over'
to zero. In version K2.10 and up, a hash flag appears at the

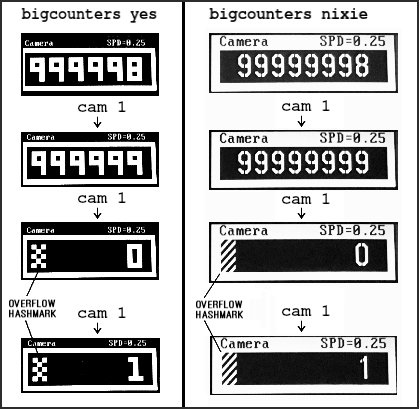

left of the counter display, warning of counter overflow, e.g.:
..or in "ASCII art", that would be:
######################################################################
#### ## ## ##
### ## ## #### ##
## ## ## # ## ## ##
## ## ## ## ## ## ##
#### ## ## ## ## ##
### ## ## ## ## ##
## ## ## # ## ## ##
## ## ## ## #### ##
#### ## ## ##
######################################################################
Similarly, negative underflows (counts below zero) clock to
zero displaying a negative sign prefix.
For 'bigcounters yes', counter progression works this way, where
'//' represents the hashmark:
Actual Frame 'bigcounter yes' Display
------------ ------------------------
-100,002 // -2 <-- wraps to -2, shows hashmark
-100,001 // -1 <-- wraps to -1, shows hashmark
-100,000 // 0 <-- wraps to -0, shows hashmark
-99,999 -99,999
-98,999 -98,999
: :
-1 -1
0 0
1 1
: :
999,998 999,998
999,999 999,999
1,000,000 // 0 <-- wraps to 0, shows hashmark
1,000,001 // 1 <-- wraps to 1, shows hashmark
: :
For 'bigcounters nixie', in version K2.10 and up, counter progression
works this way:
Actual Frame 'bigcounters nixie' Display
------------ ---------------------------
: :
-10,000,002 // -2 <-- wraps to -2, shows hashmark
-10,000,001 // -1 <-- wraps to -1, shows hashmark
-10,000,000 // -0 <-- wraps to -0, shows hashmark
-9,999,999 -9,999,999
-9,999,998 -9,999,998
: :
-1 -1
0 0
1 1
: :
99,999,998 99,999,998
99,999,999 99,999,999
100,000,000 // 0 <-- wraps to 0, shows hashmark
100,000,001 // 1 <-- wraps to 1, shows hashmark
100,000,002 // 2 <-- wraps to 2, shows hashmark
: :
This 'clock over' behavior is only true of the display; internally
the software still keeps track of the /actual/ positions, so commands
like 'cam >2000000' will still work correctly.
Note that 'bigcounters small' and 'bigcounters mocon' does not
clip digits at all, and can display the full capabilities of 32bit
values.
> Use 'bigcounters small' to maximize operator's screen history
(21 lines of screen history)
> Use 'bigcounters mocon' to monitor all channels for mocon moves.
(18 lines of screen history)
> Use 'bigcounters nixie' for normal printing and medium sized counters.
(14 lines of screen history)
> Use 'bigcounters large' for normal printing and largest counters.
(12 lines of screen history)
SEE ALSO
-- Operator Commands (OPCS) --
PRO / CAM - run frames on the projector / camera
RAT, REP - tandem shooting (interlock)
RES - reset computer's pro/cam counters to new values
CHK - check if the pro/cam/shu counters are at certain values
SEEK - run the camera/projector at slewing speeds
FEED - feed motion control moves to motors every camera frame
VELREP - special purpose velocities for tandem shoots (eg. YCM)
AUTOFILT - enable/disable the auto-wedging filter wheel
SHU - send the fader shutter to absolute position in degrees
OPN, CLS - open/close the fader shutter
DXI, DXO - set up a dissolve
FDI, FDO - set up a fade
MATH(DOCS) - math expressions (for use in frame specifications)
SYNTAX(OPCS) - online calculator and OPCS math expression syntax
MOTORS - enable/disable motor hardware for debugging scripts
-- Setup/Definitions (OPCSDEFS) --
SPDINTERP - configure exposure speed interpolations
SPD - configure camera's default exposure and slewing speeds
RAMP - configure camera's maximum accelerations and velocities
MRP - configure 'maximum ramp pulses' for shutter motors
PPR - configure 'pulses per revolution' for a motor
BIGCOUNTERS - enable/disable the large counter display
FPF - configure the 'frames-per-foot' (16mm, 35mm, Vista..)
BUCKLE, VIEWER - configure buckle/viewer sensor's ports and bitmasks
TENSION - configure tension motors
ALLSTOP - define the ALLSTOP key
HARDWARE - enable/disable using printer hardware
HISTORY
This command was in the first version of OPCS (Apple ][+).
ORIGIN
Gregory Ercolano, Los Feliz California 12/18/89
