Model 2830 - 10 Button 1A2 Multiline Phone Wiring Diagram
(Click images for full resolution)

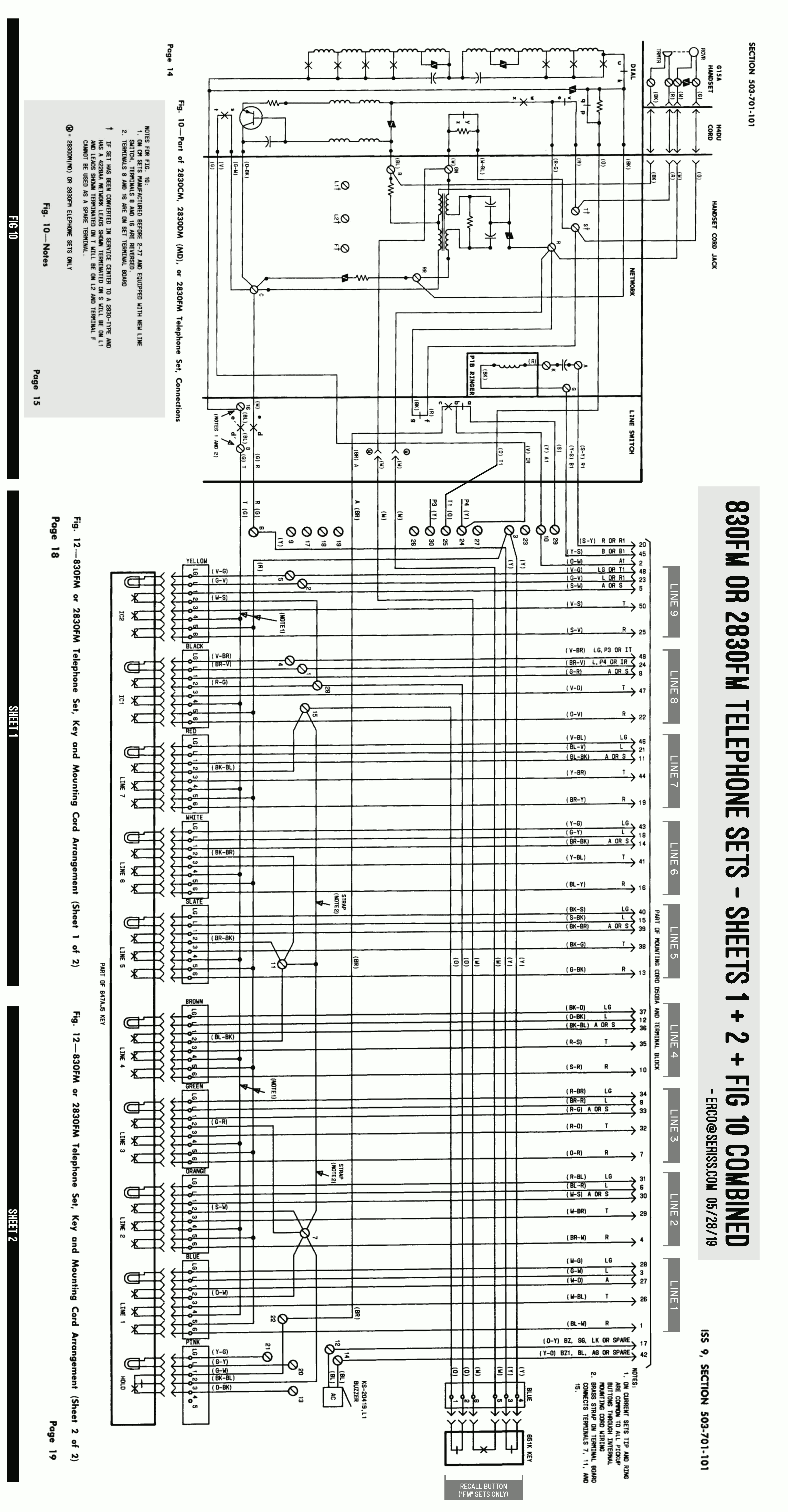

BSP 503-701-101 ISSUE 9, Oct 1979 - Fig. 10 Sheets 1 and 2

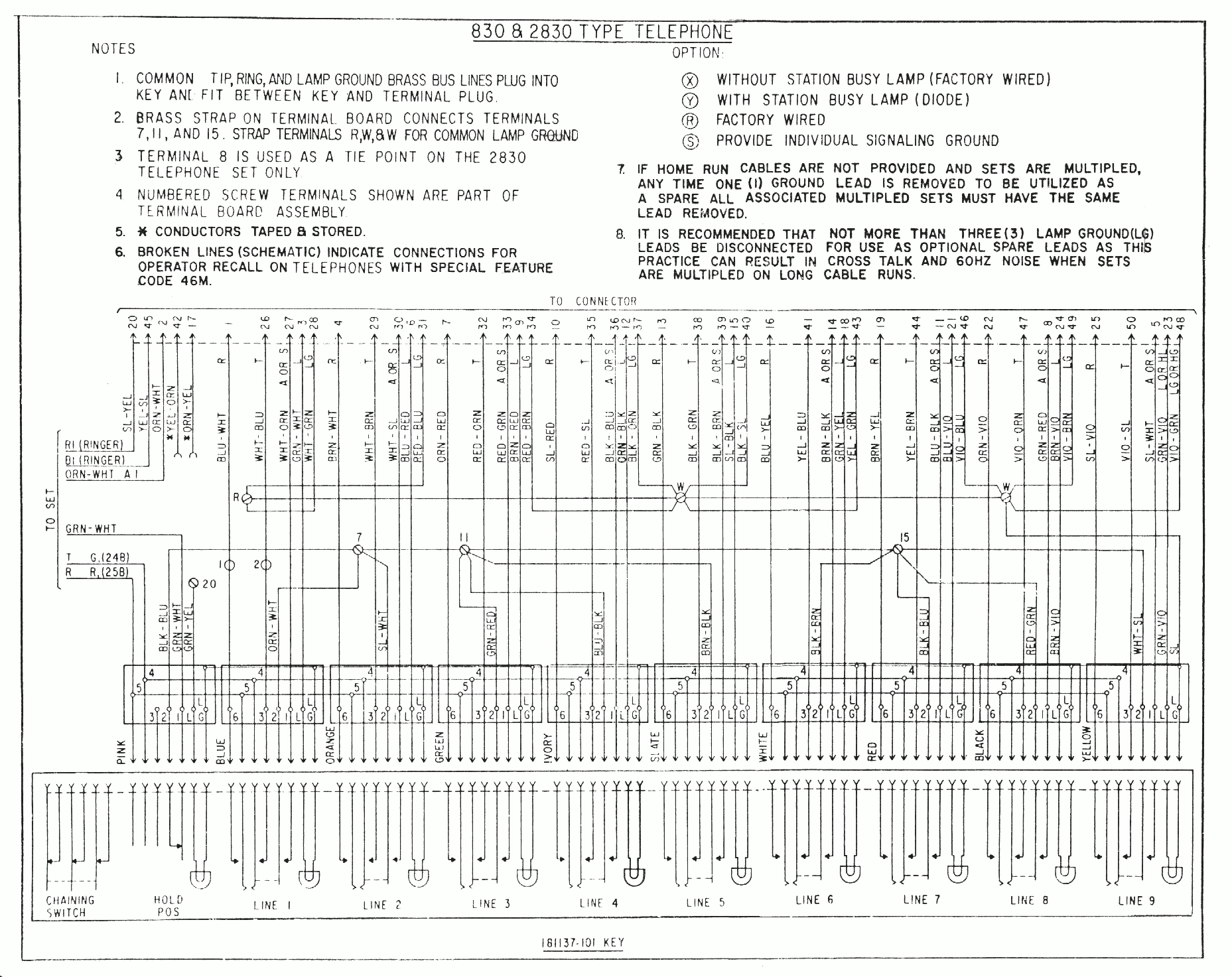

Unknown source -- possibly older wiring diagram than above.
Note in this diagram (different from above), the "LG" terminals for all 9 lines
are wired together at terminal screws "R", "W", "W" (31, 28, 34, 37, 40, 43, 46, 49, and 48).
My own 2830 is wired this way.
