Using The 3D Studio Max Submit Script

Index

Installing The 3dsmax Script

    Before using the 3dsmax script, you should first install it by making a copy of the script on your file server, so that this copy is accessible by all the machines on your network. This is usually done by your sysadmin, or the person who set up the rush software.

  1. Install the script on the file server.

    2. This should have already been set up by your sysadmin, or the person who installed the rush software:

  2. Modify the script to set up 3dsmax for your environment.

    3. This script will be executed not only by the user to bring up the submit-3dsmax GUI, but it will also be executed on all the render machines to run the renders.

    To ensure the renders run with the proper environment, you'll need to modify these lines at the top of the script:

    ### 3DSMAX SPECIFIC VARIABLES YOU MIGHT WANT TO SET ###
### Modify as needed.
if ( $G::iswindows )			# WINDOWS
{
    # Add "3dsmaxcmd.exe" to path (3dsmax6 install does not do this for us)
    $ENV{PATH} .= ";c:/3dsmax6";
}

    3dsmax (and any plugins you use) may also depend on other variables; you can define them similarly.

  3. Make a desktop shortcut to the submit script.

    4. Be sure the shortcut points to a copy on a file server, and not to local files in c:\rush\examples (windows) or /usr/local/rush/examples (unix).

  4. Invoke the submit script.

    5. Should be as simple as clicking on your desktop shortcut.

    If you prefer using a terminal window, be sure to run the script with an absolute UNC path, eg:

    	    perl //server/jobs/rushscripts/submit-3dsmax.pl
    If you don't run it with an absolute path, the frames will fail because rush didn't have the absolute path to the submit script.

  5. Verify the interface comes up.

    6. The interface should pop up. If it doesn't, verify (unix) the first line in the script's path points to the correct location of your perl binary, or (windows) the '.pl' extension is configured to correctly invoke perl.

    Click the help button (buttons with '?') for any field you want to know more about.

    When the GUI pops up, note there are various 'Advanced Options' available if you scroll the window down.

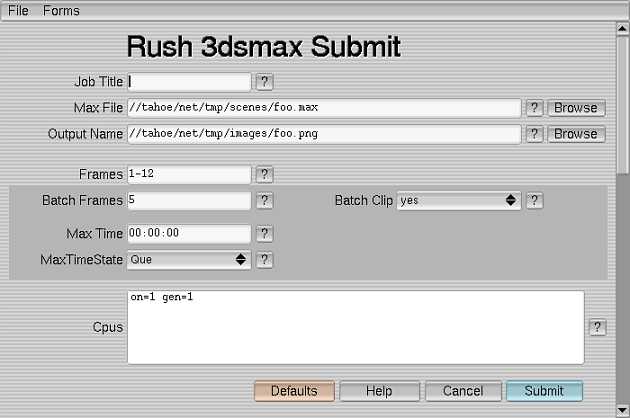

Using Submit 3dsmax

    It is assumed you are able to bring up the submit script from a desktop shortcut (which you can make by following these instructions for Mac OSX, Windows, or Linux)

  1. Enter the absolute path to a 3dsmax .max file.

    2. For the "Max File:" prompt, you can either type the pathname, or navigate to your .max file using the Browse button. If it is your first time submitting, you may have to manually type in the //server/volume name in the browser in order to get a directory listing that you can then navigate through.

    Avoid using mapped drive letters (z:/yada/yada) your project, to avoid problems with drive maps, eg. when people log out, drive maps disappear.

  2. The 'Output Pathname'.

    3. For instance, //server/volume/images/foo.png writes images as:

    	    //server/volume/images/foo.0001.png
	    //server/volume/images/foo.0002.png
	    :

  3. Enter the frame range to render.

    4. This is the range of frames you want to render; normally two values separated by a dash, eg. '1-100'.

    You can also specify individual frames, multiple ranges, or cobinations of both, eg. '1 10 20-30 400-900', which would render frames 1, 10, 20 through 30, and 400 through 900.

  4. Set your Batch Frames value to 5 or 10.

    5. This will render the comp in 5 frame chunks, ie. rendering 5 frames per execution of the renderer. This helps speed up rendering by limiting the number of times 3dsmax has to start up.

  5. Enter the cpus to use.

    6. In our case, lets use any 5 available cpus at the lowest priority:


	    +any=5@1

  6. Advanced Options.

    7. Advanced Options are optional. To see them, use the scroll bar to scroll down to check their settings.

    Click the help button (buttons with '?') for any field you want to know more about.

  7. Hit 'Submit'.

    8. This should submit your job, and a window indicating the jobid should pop up, followed by an irush interface with the jobid already set to the new job.

    The next time you bring up the submit form, it will have all the values set from the last execution. Note that you can then save this as a form so you can easily recall it later.

    For more info on the irush interface, see the irush tutorial.

  8. Monitor the job.

    9. Hit 'Frames' in irush to watch the progress of your job.
    If some frames are running, or got done already, click on some, and hit 'Logs' to see the output of the perl commands you entered.

  9. Dump the job when you're done.

    10. When you're finished with the job, hit 'Dump' in irush.

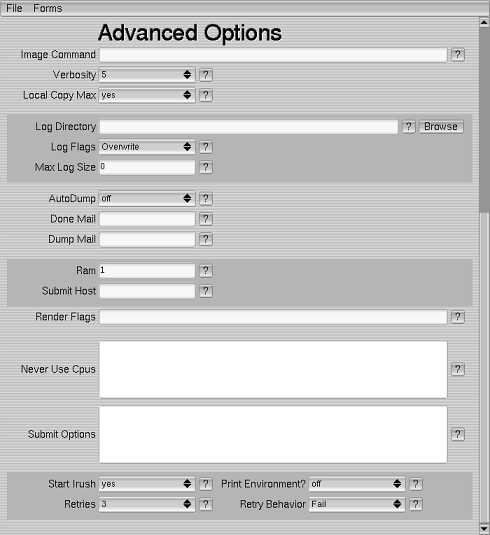

This shows the 'Advanced Options' of the 3dsmax submit form.
Just scroll down or resize the initial submit window to access them.
